Comparador Óptico

16″ x 6″ X-Y travel workstage (400mm x 150mm) All metal construction with hard-anodized stage tooling plate Single bayonet-style lens mounting system Collimating condenser with yellow/green filter and provision to mount further accessories Linear encoder (glass scale) with 20μin (0.5μm) resolution on both X and Y axes LED profile and surface illumination Fixed duplex fiber optic surface illumination Digital protractor for accurate angle measurement (1′ resolution) via Q-axis readout Available with MetLogix™ M2, M2E or M3 measuring software touch-screen and PC, or Mx-Series digital readout. Fine adjustment on all axes Quick release mechanism on the X-axis

Agregar a lista de cotización
Category: ,

Descripción

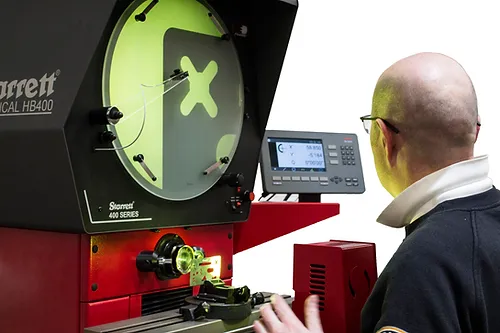

The HB400 Optical Comparator provides exceptional performance with a 16″ (400mm) diameter viewing screen, LED lighting, and 110lbs (50kg) workstage load capacity. Available with optical and/or video edge detection which removes operator subjectivity in locating edges of parts being measured. A bayonet style lens mounting system accepts a choice of six fixed interchangeable lenses as well as the OV2 Zoom or TOV2 fixed telecentric magnification video camera systems. Motorized stage, fully automatic CNC controls and swing-away lamp house are all optional features. This comparator provides performance previously only available with floor standing models.
